Solar Power Kit INCLUDING SHELTER!
Install your Vantage Vue or Vantage Pro2 console, Weather Envoy or Envoy8X outside with solar power and shelter.
Large solar panel powers a wireless console or Weather Envoy inside a weather resistant shelter (outdoor sensors are powered by the solar panel on the sensor suite).
Includes 5.0-watt solar panel, weather-resistant shelter, regulator circuit, 1.4-amp-hour 6-volt rechargeable battery and 10 ft. (3 m) cable.
Charging Circuit
• High-efficiency switching charger
• Maximum-Peak-Power-Tracking (MPPT) at 18V - Typical for 12V solar-panel
• Charges 6V SLA battery @ 2A max
• Charging voltage temperature compensation
•Low-temperature charging cut-out
• High-temperature charging cut out
• Low-battery load disconnect
• Reverse battery protection
• Designed to have multiple batteries and/or solar-panels added in parallel to extend

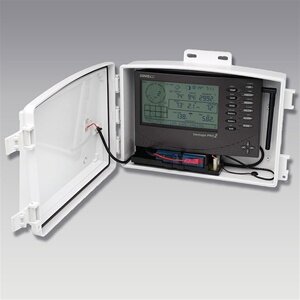

The kit consists of three key elements: a solar panel, a battery, and a charging circuit; in a protective housing in which the
console or Envoy can be mounted.
General
Charging Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . -4° to +122°F; -20° to +50°C
Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . -40° to +149°F; -40° to +65°C
Housing Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Rugged ASA plastic
Dimensions (width x length x height) . . . . . . . . . . . . . . . . 13.75 X 10 X 4.18 inches; 34.9 X 25.4 X 10.6 cm
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.58 lbs; 2.08 kg
Solar Panel (@ 1000w/m2)
Nominal power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 watt
Voc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21.6V
Isc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300mA
Vmp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18V
Imp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .277mA
Included Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10’ (3 m) console/Envoy main power cable
Battery
6614 Replacement Part Number . . . . . . . . . . . . . . . . . . .7011.005
Battery Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 volts
Battery Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.4 Ah
Estimated Battery Run Time (in darkness)
Powering a wireless Vantage Pro2 console . . . . . .58 days
Powering a cabled Vantage Pro2 console . . . . . . .10 days
Powering a Vantage Vue console . . . . . . . . . . . . 60 days
Powering an Envoy8X with 1 ID. . . . . . . . . . . . . 60 days
Powering an Envoy8X with 4 IDs . . . . . . . . . . . . 48 days
Powering an Envoy8X with 8 IDs . . . . . . . . . . . . . . 23 days
