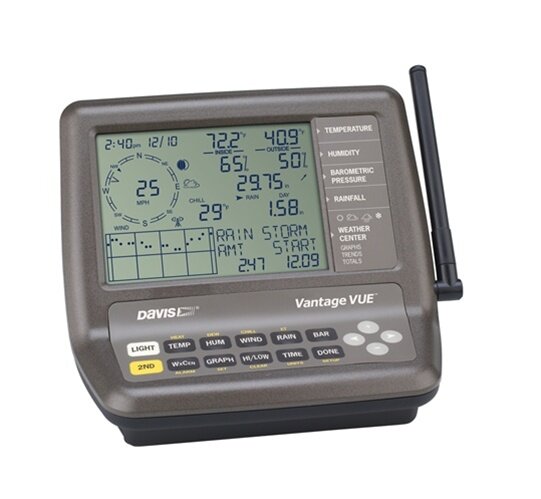

DAVIS INSTRUMENTS VANTAGE VUE Base Unit / Console ONLY - 6351
The compact console is loaded with features, including a backlit LCD screen and glow-in-the-dark keypad that makes viewing weather data easy, day or night. Unique Weather Center feature allows you to view multiple screens of weather data simply and quickly.
Vantage Vue gives you the weather data you need. You'll see current weather conditions, including indoor and outdoor temperature and humidity, barometric pressure, wind speed and direction, dew point and rainfall. You'll also get weather forecast icons, moon phase, sunrise/sunset times, graphing of weather trends, alarms and more. Vantage Vue also boasts the unique Weather Center button that displays additional data on weather variables for today and over the last 25 days.
- TIME & DATE
View the current time and date or time of sunrise/sunset.
- MOON PHASE
See the eight phases of the moon from new to full.
- FORECAST ICONS
Icons let you know to expect sun, part sun, clouds, rain, or snow.
- TEMPERATURE & HUMIDITY
Console updates outside temperature every 10 seconds and inside temperature every minute. In addition, outside humidity Updates every 50 seconds and inside humidity every minute.
- RETRANSMITS
Main console can extend range to additional consoles up to 1,000 ft. (300 m).
- BAROMETER
Five-position trend arrow shows whether barometric pressure is rising, falling, or stable.
- VARIABLE DISPLAY OPTIONS
See updated variables every 10 seconds for heat index and wind chill to get a better "feel" for the outside environment.
- RAIN
Console updates rain totals and rain rate every 20 seconds for the last 25 hours, days, months.
- "CHANGE IN WEATHER SINCE YESTERDAY" FEATURE
Allows comparisons of changes of temperature and barometric pressure from day to day.
- WEATHER CENTER
Weather Center provides additional information for each weather variable, such as daily highs and lows, temperature changes by the hour and barometric value changes. Also displays astronomical data such as meteor showers.
- USER-FRIENDLY KEYPAD
Domed buttons are easy to sense and press. Glow-in-the-dark keypad buttons give you access to weather information all day and all night. The Done key returns user to "current" screen from anywhere in the program.
- GRAPHS
Graph the last 25 hours, days or months. View up to 50 graphs including temperature, rain, rain rate, wind and barometric pressure—all on the console.
- "THIS TIME YESTER DAY" FEATURE
Data point on the graph indicates the weather during the same time yesterday to help compare and analyze day-to-day weather trends.
- ALARMS
Set 22 simultaneous, different alarms to warn of dangers such as high winds, freezing temperatures, rain rate, flood warning, and more.
- WIND SPEED
See windspeed updates every 2.5 seconds. Displays windspeed in miles per hour, meters per second, kilometers per hour and knots. Provides the average and high wind speed for two-minute and ten-minute intervals.
Available in two versions:
- US (United States): US version uses US radio frequency from 902 to 928 MHz (on units equipped with wireless transmission) and a 0.01" rain collector. Station reports in US standard units. Includes US 110v power adapter.
- USM (United States, metric): US/Metric version uses US radio frequency from 902 to 928 MHz (on units equipped with wireless transmission) and a 0.2mm rain collector. Station reports in Metric units. Includes US 110v power adapter.
Integrated Sensor Suite (ISS)
Operating Temperature ..................................................... -40° to +150°F (-40° to +65°C)
Non-operating (Storage) Temperature............................... -40° to +158°F (-40° to +70°C)
Current Draw ...................................................................0.20 mA (average), 30 mA (peak) at 3.3 VDC
Solar Power Panel ...........................................................0.5 Watts
Battery .............................................................................CR-123 3-Volt Lithium cell
Battery Life (3-Volt Lithium cell) ........................................8 months without sunlight - greater than 2 years depending on solar
charging
Wind Speed Sensor .........................................................Wind cups with magnetic switch
Wind Direction Sensor .....................................................Wind vane with magnetic encoder
Rain Collector Type .........................................................Tipping spoon, 0.01" per tip (0.2 mm with metric rain cartridge, Part
No. 7345.319), 18.0 in2 (116 cm2) collection area
Temperature Sensor Type ................................................PN Junction Silicon Diode
Relative Humidity Sensor Type .........................................Film capacitor element
Housing Material ...............................................................UV-resistant ABS & ASA plastic
ISS Dimensions ................................................................12.95" x 5.75" x 13.40" (329 mm x 146 mm x 340 mm)
Package weight: ...............................................................5.44 lbs (2.47 kg)
Console Specifications
Console Operating Temperature ....................................... +32° to +140°F (0° to +60°C)
Non-Operating (Storage) Temperature .............................. +14° to +158°F (-10° or +70°C)
Console Current Draw ...................................................... 0.9 mA average, 30 mA peak,
(add 120 mA for display lamps, add 0.125 mA for each transmitter
station received by console) at 4.4 VDC
Power Adapter .................................................................. 5 VDC, 300 mA
Battery Backup ................................................................ 3 C-cells
Battery Life (no AC power) ............................................... Up to 9 months (approximately)
Housing Material ............................................................... UV-resistant ABS plastic
Console Display Type ....................................................... LCD Transflective
Display Backlight .............................................................. LEDs
Dimensions:
Console (with antenna) .................................................... 7.5" x 5.75" x 4.5" (190 mm x 146 mm x 114 mm)
Console (with antenna) mounted on wall ........................... 7.5" x 7.0 " x 3.0" (190 mm x 178 mm x 76 mm)
Display.............................................................................. 4.13" x 3.0" (105 mm x 76 mm)
Weight (with batteries) ............................................... 1.48 lbs. (.67 kg)
Data Displayed on Console
Data display categories are listed with General first, then in alphabetical order.
General
Historical Data .................................................................. Includes the past 25 values plus the current value listed unless
otherwise noted; all can be cleared and all totals reset
Daily Data ......................................................................... Includes the earliest time of occurrence of highs and lows; period
begins/ends at 12:00 am
Monthly Data .................................................................... Period begins/ends at 12:00 am on the first of the month
Yearly Data ....................................................................... Period begins/ends at 12:00 am on the first of January unless
otherwise noted
Current Data ..................................................................... Current data appears in the right most column in the console graph
and represents the latest value within the last period on the graph;
totals can be set or reset
Graph Time Interval ......................................................... 10 min., 1 hour, 1 day, 1 month, 1 year (user-selectable, availability
depends upon variable selected) (2.5 seconds for Last 25 Wind
Speeds)
Graph Time Span.............................................................. 26 Intervals (Current Interval plus 25 past values included; see
Graph Intervals to determine time span)
Graph Variable Span (Vertical Scale) ................................ Automatic (varies depending upon data range); Maximum and
Minimum value in range appear in Weather Center
Alarm Indication ................................................................ Alarms sound for only 2 minutes (except for time) if operating on
battery power. Alarm message is displayed in Weather Center as long as threshold is met or exceeded. Alarms can be silenced (but
not cleared) by pressing the DONE key.
Transmission Interval ........................................................ Varies with transmitter ID code from 2.25 seconds (#1=shortest), to
3 seconds (#8=longest)
Update Interval ................................................................. Varies with sensor - see individual sensor specs
Barometric Pressure
Resolution and Units ......................................................... 0.01" Hg, 0.1 mm Hg, 0.1 hPa/mb (user-selectable)
Range............................................................................... 16.00" to 32.50" Hg, 410 to 820 mm Hg, 540 to 1100.0 hPa/mb
Elevation Range ............................................................... -999’ to +15,000’ (-600 m to +4570 m). (Note that console screen
limits entry of lower elevation to -999’ when using feet as elevation
unit.)
Uncorrected Reading Accuracy ......................................... ±0.03" Hg (±0.8 mm Hg, ±1.0 hPa/mb) (at room temperature)
Sea-Level Reduction Equations Used ............................... United States Method employed prior to use of current "R Factor"
method ("NOAA"), Altimeter Setting
NOAA Equation Source..................................................... Smithsonian Meteorological Tables
NOAA Equation Accuracy ................................................. ±0.01" Hg (±0.3 mm Hg, ±0.3 hPa/mb)
NOAA Elevation Accuracy Required.................................. ±10’ (3m) to meet equation accuracy specification
Overall Accuracy............................................................... ±0.03" Hg (±0.8 mm Hg, ±1.0 hPa/mb)
Trend (change in 3 hours) ................................................. Change 0.06" (2 hPa/mb, 1.5 mm Hg) = Rapidly
Change 0.02" (.7hPa/mb, .5 mm Hg)= Slowly
Trend Indication ................................................................ 5 position arrow: Rising (rapidly or slowly), Steady, or Falling (rapidly
or slowly)
Update Interval ................................................................. 1 minute
Current Data ..................................................................... Instant and Hourly Reading; Daily, Monthly, Yearly High and Low;
Barometer change 24-hour
Historical Data .................................................................. 15-min. and Hourly Reading; Daily, Monthly Highs and Lows
Alarms .............................................................................. High Threshold from Current Trend for Storm Clearing (Rising Trend
Low Threshold from Current Trend for Storm Warning (Falling Trend)
Range for Rising and Falling Trend Alarms ....................... 0.01 to 0.25" Hg (0.1 to 6.4 mm Hg, 0.1 to 8.5 hPa/mb)
Clock
Resolution ........................................................................ 1 minute
Units ................................................................................. Time: 12 or 24 hour format (user-selectable)
Date.................................................................................. US or International format (user-selectable)
Accuracy........................................................................... ±8 seconds/month
Adjustments ...................................................................... Time: Automatic Daylight Savings Time (for users in North America
and Europe that observe it in AUTO mode, MANUAL setting available
for all other areas) Date: Automatic Leap Year
Alarms .............................................................................. Once per day at set time when active
Dewpoint (calculated)
Resolution and Units ......................................................... 1°F or 1°C (user-selectable)
Range ............................................................................... -105° to +130°F (-76° to +54°C)
Accuracy ........................................................................... ±3°F (±1.5°C) (typical)
Update Interval.................................................................. 10 to 12 seconds
Source .............................................................................. World Meteorological Organization (WMO)
Equation Used ..................................................................WMO Equation with respect to saturation of moist air over water
Variables Used.................................................................. Instant Outside Temperature and Instant Outside Relative Humidity
Current Data ..................................................................... Instant Calculation; Daily, Monthly High and Low
Historical Data .................................................................. Hourly Calculations; Daily, Monthly, Yearly Highs and Lows
Alarms .............................................................................. High and Low Threshold from Instant Calculation
Evapotranspiration (calculated, requires Vantage Pro2 ISS with solar radiation sensor)
Resolution and Units ......................................................... 0.01" or 0.2 mm (user-selectable)
Range ............................................................................... Daily to 32.67" (999.9 mm); Monthly & Yearly to 199.99" (1999.9 mm)
Accuracy ........................................................................... Greater of 0.01" (0.25 mm) or ±5%, Reference: side-by-side
comparison against a CIMIS ET weather station
Update Interval.................................................................. 1 hour
Calculation and Source ..................................................... Modified Penman Equation as implemented by CIMIS
Current Data ..................................................................... Latest Hourly Total Calculation, Daily, Monthly, Yearly Total
Historical Data .................................................................. Hourly, Daily, Monthly, Yearly Totals
Alarm ................................................................................ High Threshold from Latest Daily Total Calculation
Forecast
Variables Used.................................................................. Barometric Reading & Trend, Wind Speed & Direction, Rainfall,
Temperature, Humidity, Latitude & Longitude, Time of Year
Update Interval.................................................................. 1 hour
Display Format .................................................................. Icons on top center of display; displays weather conditions that may
occur for the next 12 hours.
Variables Predicted ........................................................... Sky Condition, Precipitation
Heat Index (calculated)
Resolution and Units ......................................................... 1°F or 1°C (user-selectable)
Range ............................................................................... -40° to +165°F (-40° to +74°C)
Accuracy ........................................................................... ±3°F (±1.5°C) (typical)
Update Interval.................................................................. 10 to 12 seconds
Source .............................................................................. United States National Weather Service (NWS)/NOAA
Formulation Used..............................................................Steadman (1979) modified by US NWS/NOAA and Davis Instruments
Variables Used.................................................................. Instant Outside Temperature and Instant Outside Relative Humidity
Current Data ..................................................................... Instant Calculation; Daily, Monthly High
Historical Data .................................................................. Hourly Calculations; Daily, Monthly, Yearly Highs
Alarm ................................................................................ High Threshold from Instant Calculation
Humidity
Inside Relative Humidity (sensor located in console)
Resolution and Units.................................................. 1%
Range........................................................................ 0 to 100% RH
Accuracy.................................................................... ±3% (0 to 90% RH), ±4% (90 to 100% RH)
Update Interval .......................................................... 1 minute
Current Data .............................................................. Instant (user adjustable) and Hourly Reading; Daily, Monthly High and
Low
Historical Data ........................................................... Hourly Readings; Daily, Monthly, Yearly Highs and Lows
Alarms ....................................................................... High and Low Threshold from Instant Reading
Outside Relative Humidity (sensor located in ISS)
Resolution and Units.................................................. 1%
Range........................................................................ 0 to 100% RH
Accuracy.................................................................... ±3% (0 to 90% RH), ±4% (90 to 100% RH)
Temperature Coefficient ............................................ 0.03% per °F (0.05% per °C), reference 68°F (20°C)
Drift ........................................................................... ±0.5% per year
4
Update Interval .......................................................... 50 seconds to 1 minute
Current Data.............................................................. Instant (user adjustable) and Hourly Reading; Daily, Monthly, Yearly
High and Low
Historical Data........................................................... Hourly Readings; Daily, Monthly Highs and Lows
Alarms....................................................................... High and Low Threshold from Instant Reading
Moon Phase
Console Resolution........................................................... 1/8 (12.5%) of a lunar cycle, 1/4 (25%) of lighted face on console
WeatherLink Resolution .................................................... 0.09% of a lunar cycle, 0.18% of lighted face maximum (depends on
screen resolution)
Range............................................................................... New Moon, Waxing Crescent, First Quarter, Waxing Gibbous, Full
Moon, Waning Gibbous, Last Quarter, Waning Crescent
Accuracy........................................................................... ±38 minutes
Rainfall
Resolution and Units ......................................................... 0.01" or 0.2 mm (user-selectable) (1 mm at totals 2000 mm)
Range............................................................................... 0 to 199.99" (0 to 6553 mm)
Rain Rate ......................................................................... 0 to 40"/hr (0 to 1016 mm)
Accuracy........................................................................... Greater of 4% or 1 tip
Storm Determination Method............................................. 0.02" (0.5 mm) begins a storm event, 24 hours without further
accumulation ends a storm event
Current Data ..................................................................... Totals for Past 15-min, Past 24-hour, Daily, Monthly, Yearly (start
date user-selectable) and Storm (with begin date); Umbrella is
displayed when 15 minute total exceeds zero
Historical Data .................................................................. Totals for 15-min, Daily, Monthly, Yearly (start date user-selectable)
and Storm (with begin and end dates)
Alarms .............................................................................. High Threshold from Latest Flash Flood (15-min. total, default is
0.50", 12.7 mm), 24-hour Total, Storm Total,
Range for Rain Alarms...................................................... 0 to 99.99" (0 to 999.7 mm)
Rain Rate
Resolution and Units ......................................................... 0.01" or 0.2 mm (user-selectable) at typical rates (see Fig. 3 and 4)
Range............................................................................... 0, 0.04"/hr (1 mm/hr) to 40"/hr (0 to 1016 mm/hr)
Accuracy........................................................................... ±5% when rate is under 5"/hr (127mm/hr)
Update Interval ................................................................. 20 to 24 seconds
Calculation Method ........................................................... Measures time between successive tips of rain collector. Elapsed
time greater than 15 minutes or only one tip of the rain collector
constitutes a rain rate of zero.
Current Data ..................................................................... Instant and Hourly, Daily, Monthly and Yearly High
Historical Data .................................................................. Hourly, Daily, Monthly and Yearly Highs
Alarm ................................................................................ High Threshold from Instant Reading
Solar Radiation (requires Vantage Pro2 ISS with solar radiation sensor)
Resolution and Units ......................................................... 1 W/m2
Range............................................................................... 0 to 1800 W/m2
Accuracy........................................................................... ±5% of full scale (Reference: Eppley PSP at 1000 W/m2)
Drift .................................................................................. up to ±2% per year
Cosine Response.............................................................. ±3% for angle of incidence from 0° to 75°
Temperature Coefficient.................................................... -0.067% per °F (-0.12% per °C); reference temperature = 77°F (25
°C)
Update Interval ................................................................. 50 seconds to 1 minute (5 minutes when dark)
Current Data ..................................................................... Instant Reading and Hourly Average; Daily, Monthly High
Sunrise and Sunset
Resolution ........................................................................ 1 minute
Accuracy........................................................................... ±1 minute
Reference ......................................................................... United States Naval Observatory
Temperature
Inside Temperature (sensor located in console)
Resolution and Units ................................................. Current Data: 0.1°F or 1°F or 0.1°C or 1°C (user-selectable)
Historical Data and Alarms: 1°F or 1°C (user-selectable)
Range........................................................................ +32° to +140°F (0° to +60°C)
Sensor Accuracy........................................................ ±1°F (±0.5°C)
Update Interval .......................................................... 1 minute
Current Data .............................................................. Instant Reading (user adjustable); Daily, Monthly, Yearly High and
Low
Historical Data ........................................................... Hourly Readings; Daily and Monthly Highs and Lows; Highs and Lows
for Last 25 Days; Temp change per hour, Temp change for last 24
hours.
Alarms ....................................................................... High and Low Thresholds from Instant Reading
Outside Temperature (sensor located in ISS)
Resolution and Units.................................................. Current Data: 0.1°F or 1°F or 0.1°C or 1°C (user-selectable) nominal
(see Fig. 1) Historical Data and Alarms: 1°F or 1°C (user-selectable)
Range........................................................................ -40° to +150°F (-40° to +65°C)
Sensor Accuracy........................................................ ±1°F (±0.5°C) above +20°F (-7°C); ±2°F (±1°C) under +20°F (-7°C)
(see Fig. 2)
Radiation Induced Error (Passive Shield) ................... +4°F (2°C) at solar noon (insolation = 1040 W/m2, avg. wind speed
2 mph (1 m/s)) (reference: RM Young Model 43408 Fan-Aspirated Radiation Shield)
Update Interval .......................................................... 10 to 12 seconds
Current Data .............................................................. Instant Reading (user adjustable); Daily, Monthly, Yearly High and
Low
Historical Data ........................................................... Hourly Readings; Daily, Monthly, Yearly Highs and Lows
Alarms ....................................................................... High and Low Thresholds from Instant Reading
Ultra Violet (UV) Radiation Index (requires Vantage Pro2 ISS wi th UV sensor)
Resolution and Units ......................................................... 0.1 Index
Range ............................................................................... 0 to 16 Index
Accuracy ........................................................................... ±5% of full scale (Reference: Yankee UVB-1 at UV index of 10
(Extremely High))
Cosine Response .............................................................. ±4% (0° to 65° incident angle); 9% (65° to 85° incident angle)
Update Interval.................................................................. 50 seconds to 1 minute (5 minutes when dark)
Current Data ..................................................................... Instant Reading
Wind
Wind Chill (Calculated)
Resolution and Units.................................................. 1°F or 1°C (user-selectable)
Range........................................................................ -110° to +135°F (-79° to +57°C)
Accuracy.................................................................... ±2°F (±1°C) (typical)
Update Interval .......................................................... 10 to 12 seconds
Source ....................................................................... United States National Weather Service (NWS)/NOAA
Equation Used ........................................................... Osczevski (1995) (adopted by US NWS in 2001)
Variables Used .......................................................... Instant Outside Temperature and 10-min. Avg. Wind Speed
Current Data .............................................................. Instant Calculation; Hourly, Daily, Monthly, Yearly Low
Historical Data ........................................................... Hourly, Daily and Monthly Lows
Alarm......................................................................... Low Threshold from Instant Calculation
Wind Direction
Display Resolution ..................................................... 16 points (22.5°) on compass rose, 1° in numeric display
Range........................................................................ 0-360°
Accuracy.................................................................... ±3°
Update Interval .......................................................... 2.5 to 3 seconds
Current Data .............................................................. Instant Reading (user adjustable); 10-min. Dominant; Hourly, Daily,
Monthly Dominant
Historical Data ........................................................... Past 6 10-min. Dominants on compass rose only; Hourly, Daily,
Monthly Dominants
Wind Speed
Resolution and Units.................................................. 1 mph, 1 km/h, 0.5 m/s, or 1 knot (user-selectable)
Range........................................................................ 2 to 180 mph, 2 to 156 knots, 1 to 80 m/s, 3 to 290 km/h
Update Interval .......................................................... Instant Reading: 2.5 to 3 seconds, 10-minute Average: 1 minute
Accuracy.................................................................... ±2 mph (2 kts, 3 km/h, 1 m/s) or ±5%, whichever is greater
Current Data .............................................................. Instant Reading; 10-minute and Hourly Average; 10-minute High Gust
with Direction of Gust; 2-minute Average; Hourly High; Daily, Monthly
and Yearly High with Direction of High; Beaufort Scale
Historical Data ........................................................... 2.5 sec., 10 min. and Hourly Averages; Hourly Highs; Daily, Monthly
and Yearly Highs with Direction of Highs
Alarms ....................................................................... High Thresholds from Instant Reading and 10-minute Average
Wireless Communication Specifications
Transmit/Receive Frequency............................................. US Models: 902 - 928 MHz FHSS
Overseas Models: 868.0 -868.6 MHz FHSS
ID Codes Available ........................................................... 8
Output Power.................................................................... 902 - 928 MHz FHSS: FCC-certified low power, less than 8 mW, no
license required
868.0 -868.6 MHz FHSS: CE-compliant, less than 8 mW, no license
required
Range:
Line of Sight ................................................................. up to 1000 feet (300 m)
Through Walls............................................................... 200 to 400 feet (60 to 120 m)
|
