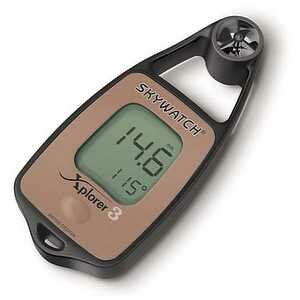

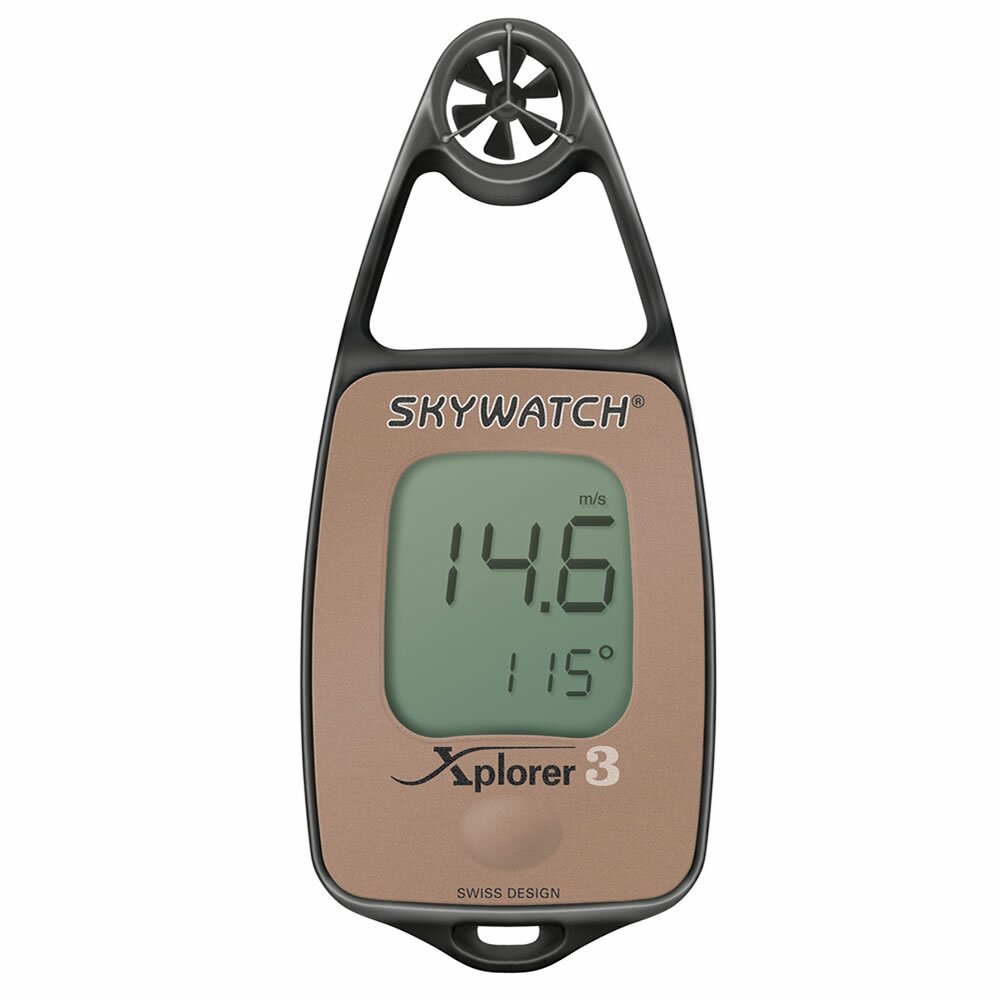

NTech's SKYWATCH Xplorer series was launched in 2004, and has proven to be the most exciting line of windmeters yet! Packed with features essential to monitoring the environment, the Xplorer series breaks price barriers and is simple to use.
Designed for consumer and professional use, the Xplorer does not include complicated and seldom-used features such as downloading and storing. Press one button, and instant readings are at your fingertips. Designed in Switzerland and built to our demanding specifications, the SKYWATCH Xplorer series is engineered to provide a lifetime of accurate and dependable use.
Skywatch Xplorer 3 Series Measures:
- Wind Speed - current, maximum
- Wind Direction - electronic compass
- Ambient Temperature - current, windchill, maximum, minimum, water
- Electronic Compass - analogical and digital
- Bright EL Backlight - to view data in dim light
- Replaceable Impeller - factory replaceable
- Sealed and weatherproof - perfect for use around water
- Windchill
Detailed Specifications:
WINDSPEED:
- All Xplorers
- Balanced impeller is integrated into wind meter
- The impeller is magnetized, producing a magnetic field when rotating which is measured internally
- Damage to the impeller is unlikely due to the small opening, but repair can be performed
TEMPERATURE:
- Xplorers 2, 3, 4
- Internal thermometer is attached to the stainless steel back
- Temperature adjusts quickly, although drastic temperature changes may require several minutes for accuracy
- Temperature is read quickly by touching the back to an object of the same temperature
- Water temperature is read quickly by submerging the unit briefly
DIGITAL COMPASS:
- Xplorer 3 and 4
- Designed to be used in vertical position
- Will display windspeed and compass simultaneously
- Electronic calibration before use ensures absolute precision (easy process)
- Calibration is essential for proper use
- Accurate wind direction can be found in this way - we introduced this feature in 2004
Specifications:
|
Features: |
Windspeed |
Temperature |
Compass |
Altitude |
Pressure |
Models: |
All Xplorers |
Xplorers 2, 3, 4 |
Xplorers 3 and 4 |
Xplorer 4 |
Xplorer 4 |
Units: |
km/h, mph, m/s, fps, knots |
°F, °C |
Degrees (°) off North |
feet, meters |
inHg, hPa |
Range: |
0.7 to over 94 mph
1.1 to over 150 km/h |
-58°F to 212 °F
-50°C to 100°C |
0° to 359° off North |
-2,300 to 29,500 ft
(above 9,999 ft. only meters is displayed)
-700 to 9,000 m |
8.86 to 32.50 inHg
300 to 1100 hPa |
Resolution: |
0.1 unit |
0.2°F, -0.1°C |
1° |
3 ft, 1 m |
0.01 inHg, 1 hPa |
Accuracy: |
+/- 3% from 2.0 to 94 mph
(3.1 to 150 km/h) |
+/- 0.5°F
+/- 0.3°C |
+/- 4° when calibrated |
+/- 10 ft
+/- 3 m |
+/- 0.03 inHg
+/- 1 hPa |
Measuring Cycle: |
Twice per second |
Twice per second |
Twice per second |
Once per second |
Once per second |
|
|
 |
 |
 |
 |
|
 |

|
