WeatherLink for Vantage Pro/Pro2
For the ultimate in weather monitoring, add WeatherLink to your Vantage Pro or Pro2. The data logger fits neatly into the console or Weather Envoy, storing weather data even when its not connected to your PC. Later, download the data and use the software to create graphs, generate summaries, and more. Expanded Reporting. See current conditions at a glance on the instant weather bulletin. Graph data on a daily, weekly, or yearly basis. Or view multiple weather variables at the same time to see their relationships.
Create Weather Watcher Reports in NOAA National Climatic Data Center Format. View special reports on heating degree days, cooling degree days, and fuel-oil demand. With optional sensors, see reports on evapotranspiration, leaf wetness, soil moisture, soil temperature, sunburn risk for each skin type, and solar energy.
Sharing Your Weather Data. Help the National Weather Service develop improved weather prediction models by submitting your data to the Citizen Weather Observer Program via APRS or the Internet. Create your own weather website or post weather conditions to a LAN using our included HTML templates. Upload other files (such as images from a webcam) along with your weather data. Participate in The GLOBE Program, an international weather-related science program for students from elementary through high school, supported by NASA and NSF.
System Requirements: Requires Windows 95/NT4.0/98SE/2000/ME/XP with serial port. Weather website features require Internet Explorer 4 or above. Also available in a USB version and a version for Mac OSX. Includes software on CD, data logger, and 8ft (2.4 M) cable to connect the data logger to your computer. Choose a logging interval of 1, 5, 10, 15, 30, 60, or 120 minutes. Depending on the logging interval, store up to six months of data before downloading. To track multiple stations on the same computer, add one WeatherLink for each station.
To view the same on multiple computers, add one Extra User License Kit for each computer. Compatible with both original Vantage Pro and Vantage Pro2. FREE Shipping USA & Int'l via USPS or UPS - usually 3-7 days in USA; 4-10 days Int'l
Data Logger Functions
Control Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Set archive interval, set/clear calibration numbers, set Longitude/ Latitude, set Year-to-Date rain total, set/clear alarm thresholds, clear total values, set time/date.
Download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Data may be transferred automatically to your computer once an hour using the Auto Download command. More frequent downloads can be selected to support Internet file transfers. Only new archive data is transferred during the download.
Data Logger Archived Data
The Data Logger stores up to 2560 archive records (one 52-byte record per archive interval) for later transfer to your computer. The archive records are stored in 128K of non-volatile memory; protecting the data even if the console loses power. Maxima, minima, averages, and totals are taken over the archive interval.
Archive Record Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . Time/Date of Record, Inside Temperature (last or avg.), Outside
Temperature (last or avg.), Maximum Air Temperature, Minimum Air Temperature, Wind Direction (dominant), Wind Speed (average), Maximum Wind Speed, Rainfall (total), Rain Rate, Inside Humidity (last), Outside Humidity (last), Barometric Pressure (last), Solar Radiation, Hi Solar Radiation, UV, Hi UV, Evapotranspiration, Forecast, Leaf Temperature (2), Leaf Wetness (2), Extra Humidity (2), Extra Temperature (2), Soil Temperature (4), Soil Moisture (4), Wind Samples, Wind Tx, Length of Archive Interval, ISS ReceptionArchive Interval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . User-selectable from the following intervals (in minutes): 1, 5, 10, 15, 30, 60, or 120
Archive Storage Capacity (the amount of time before the archive is completely filled):
- 1 Minute Archive Interval . . . . . . . . . . . . . . . . . . . . . 42 hours
- 5 Minute Archive Interval . . . . . . . . . . . . . . . . . . . . . 8 days
- 10 Minute Archive Interval . . . . . . . . . . . . . . . . . . . . 17 days
- 15 Minute Archive Interval . . . . . . . . . . . . . . . . . . . . 26 days
- 30 Minute Archive Interval . . . . . . . . . . . . . . . . . . . . 53 days
- 60 Minute Archive Interval . . . . . . . . . . . . . . . . . . . . 106 days
- 120 Minute Archive Interval . . . . . . . . . . . . . . . . . . . 213 days
Download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Data may be transferred automatically from the data logger to your computer up to once an hour using the Auto Download command. Data can be transferred more frequently, from once a minute to once every two hours, to support Internet uploading and other data sharing features. Only new archive data is transferred during the download.
Data Display Options
Some of the weather data and reports listed below require optional sensors.
Real-Time Displays (these displays update in real-time):
Graphical Bulletin . . . . . . . . . . . . . . . . . . . . . . . . . . Inside Temperature, Outside Temperature, Wind Direction (0°- 360°), Wind Speed, Daily Rain Total, Monthly Rain Total, Year-to-Date Rain Total, Storm Total, Rain Rate, Inside Humidity, Outside Humidity, Barometer, Barometer 6-hour Plot, Evapotranspiration (ET) (day, month, year), Today’s Highs and Lows, Forecast Icons, Forecast Text, and Illuminated Fraction of the Moon Disk.
Text-Based Summary . . . . . . . . . . . . . . . . . . . . . . . Inside Temperature, Outside Temperature, Wind Direction (0°- 360°), Wind Speed, Daily Rain Total, Monthly Rain Total, Year-to-Date Rain Total, Storm Total, Rain Rate, Inside Humidity, Outside Humidity, Barometer, UV, Solar Radiation, ET (day, month, year), Today’s Highs and Lows, Forecast Text, and Moon Phase.
Update Interval . . . . . . . . . . . . . . . . . . . . . . . . . . . . Two seconds (approximately)
Plotting Displays:
Plot Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Enables graphing of all database information (multiple variables may be plotted on a single graph) over any of the following spans (1 hr, 4 hr, 8 hr, 12 hr, 1 day, 3 days, Week, Month, Year). Multiple dates may also be plotted on the same graph.
Strip Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Four stacked line graphs (multiple variables may be plotted on a single graph), which update at the time of each archive interval. Strip charts may use any of the following spans (1 hr, 4 hr, 8 hr, 12 hr, 1 day, 3 days, Week, Month, Year).
Reports:
NOAA Monthly Summary . . . . . . . . . . . . . . . . . . . . . Based on the National Oceanic and Atmospheric Administration (NOAA) Monthly Weather Watcher report
NOAA Yearly Summary . . . . . . . . . . . . . . . . . . . . . . Based on the National Oceanic and Atmospheric Administration (NOAA) Yearly Weather Watcher report
Yearly Rainfall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Calculates rainfall totals broken down by month and year. Rainfall data may be altered and data may be added to reflect rainfall totals for months and years which are not contained in your weather database.
Degree-Days . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tracks degree-days and progress towards development for an unlimited number of crops or pests; base and upper development thresholds and development totals entered by user.
Temperature/Humidity Hours . . . . . . . . . . . . . . . . . . Calculates the number of hours the temperature has been either above or below a given threshold, and that during which time the humidity was above a given threshold from a given start date. Typically used to track conditions for the development of agricultural pests and molds.
Soil Temperature Hours . . . . . . . . . . . . . . . . . . . . . . Calculates the time that soil temperature has been above freezing (or some other threshold). Typically used to determine a time to plant crops.
Chilling Requirements . . . . . . . . . . . . . . . . . . . . . . . Calculates the number of hours spent below a specified temperature during a specified period of time. Typically used to determine if the coldness requirement for a fruit tree in dormancy has been met.
Bright Sunshine Hours . . . . . . . . . . . . . . . . . . . . . . . Calculates amount of sunshine for a selected time period.
Leaf Wetness Hours . . . . . . . . . . . . . . . . . . . . . . . . Calculates the amount of leaf wetness hours over a selected time period.
Fuel Demand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Estimates fuel usage based on past usage and outside temperatures.
Total ET. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Calculates ET for a selected time period.
Sunrise & Sunset Times. . . . . . . . . . . . . . . . . . . . . . Calculates sunrise and sunset times for any given latitude, longitude and date.
CLICK HERE TO VIEW USER GUIDE
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
ALL Features
WeatherLink® for Vantage Pro® and Vantage Pro2™ Software and Data Logger
WeatherLink® for Vantage Pro® and Vantage Pro2™ consists of our WeatherLink software and a specialized data logger that connects to a Vantage Pro or Vantage Pro2 console. The software and data logger transfer your Vantage Pro or Vantage Pro2 weather data to your computer, allowing you to create a permanent weather database. Once stored in the database, your weather information can be used to generate a wide variety of reports and graphical displays, and can also be shared via the Internet. WeatherLink is packaged with one of the following data loggers:

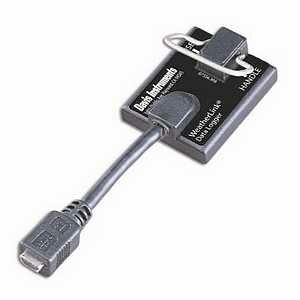

• Serial Data Logger (# 6510SER) — Connects your Vantage Pro or Vantage Pro2 console to a computer via a serial connection or a remote modem connection.
• USB Data Logger (# 6510USB) — Connects your Vantage Pro or Vantage Pro2 console to a computer via a USB connection.
WeatherLink is also available in specially designed models:
• WeatherLink for APRS with Streaming Data Logger (# 6540) — Connects a Vantage Pro2 console or Weather Envoy to a ham radio with TNC modem for instant transmission of both your location and the local weather conditions via APRS.
• WeatherLink with Alarm Output with Connector Block (# 6544) — Allows you to use the to control fans, heaters, etc., based on weather parameters you set.
• WeatherLink for Emergency Response Teams (# 6550) — Provides real-time weather data needed to map the footprint of a hazardous plume, predict its dispersion, and help make critical public safety decisions.
• WeatherLink for Irrigation Control with Connector Block (# 6560) —Allows you to use your to turn your irrigation system on or off.
Each also simultaneously logs and stores the data, which can later be downloaded to your PC for all the graphing, charting, and analysis available in WeatherLink.
WeatherLink Software Features
• Displays the current data in a real-time “bulletin” on the computer.
• Allows you to set and clear data in the console (time and date, highs and lows, alarm thresholds, calibration numbers, etc.) from the computer.
• Graphs archived weather data on an hourly, daily, weekly, monthly, or yearly basis.
• Generates Weather Watcher reports in the National Climatic Data Center (NOAA) format.
• Collects data from multiples on the same computer.
• Internet support for creating your own weather website and for uploading other files such as web cam images.
• Includes support for GLOBE, an international weather-related science program for students from elementary through high school. Visit www.globe.gov for more information.
• APRS data protocol allows volunteers in the Citizen Weather Observer Program (CWOP) to send real-time weather data to the National Weather Service. CWOP data is used for weather education and research projects. Visit www.wxqa.com for more information.
WeatherLink Data Logger Features
• Archives weather data for subsequent transfer to the computer.
• Manages data communication between the and the WeatherLink software.
• Information on WeatherLink communications protocols and data formatting can be found on the Software Supportpage at our website: (http://www.davisnet.com/support/weather/).
For phone modem connections, the following additional hardware is required: One external modem to connect to the WeatherLink and one internal modem or external modem connected to your computer (modems must be Hayes compatible), and Telephone Modem Adapter (# 6533).
|
|
 |
 |
 |
 |
|
 |
